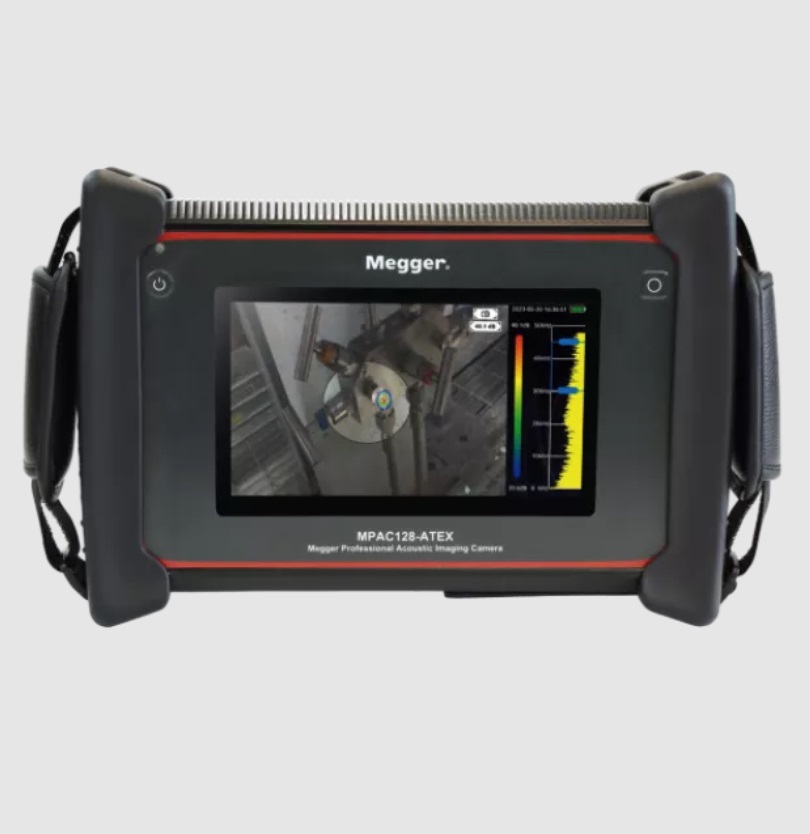

Megger MPAC 128 ATEX Acoustic Imager – Safe, Accurate Leak & Partial Discharge Detection

The Megger MPAC 128 ATEX Acoustic Imager is a high-performance acoustic imaging solution designed for safe and reliable leak detection and electrical fault identification in hazardous industrial environments. ATEX-certified for Zone 2 applications, this advanced acoustic camera helps maintenance professionals quickly identify gas leaks, vacuum leaks, pressure leaks, corona discharge, arcing, and partial discharge while maintaining a safe operating distance of up to 120 meters.

Built with 128 high-sensitivity MEMS microphones and a wide frequency range from 2 kHz to 48 kHz, the MPAC 128 delivers accurate acoustic visualization and precise leak quantification in real time. Its advanced imaging technology significantly reduces inspection time and minimizes costly downtime, helping industries improve operational safety and energy efficiency.

The integrated 8 MP optical camera and large 7-inch capacitive touch display provide clear imaging and intuitive operation, allowing users to capture photos, videos, and sound recordings in JPG, WAV, and MP4 formats for detailed reporting and analysis.

Designed for harsh industrial environments, the rugged IP54-rated housing protects the device from dust and water splashes, while the rechargeable battery delivers up to 4 hours of continuous operation for extended field inspections.

Ideal for oil & gas facilities, chemical plants, power utilities, manufacturing sites, and hazardous industrial zones, the Megger MPAC 128 ATEX Acoustic Imager provides a safer, faster, and more efficient way to detect leaks and electrical faults before they result in equipment failure or production losses.

Key Features
ATEX-certified for hazardous Zone 2 environments
Detects gas, pressure, and vacuum leaks
Identifies corona, arcing, and partial discharge faults
Safe long-distance detection up to 120 meters
128 MEMS microphones for accurate acoustic imaging
Frequency range: 2 kHz to 48 kHz
Minimum frame rate of 25 fps for real-time analysis
8 MP optical camera with 62° horizontal and 48° vertical field of view
Rugged IP54-rated industrial design
Rechargeable battery with up to 4 hours runtime
7-inch capacitive touch screen interface
Supports JPG, WAV, and MP4 recording formats
Includes protective carrying accessories and storage devices

Leak Detection Performance
1 m at 7 bar: 0.37 ml/s
10 m at 7 bar: 0.7 ml/s

Included Accessories
Hand strap
Shoulder strap
Battery charger
USB-C cable
Headphones

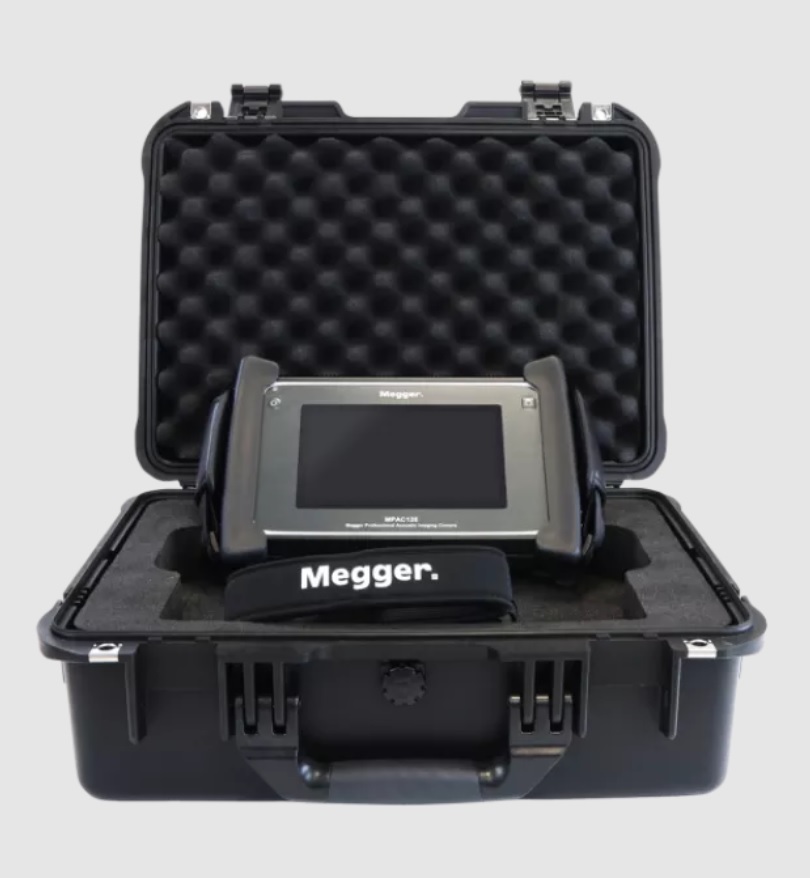

Protective carrying case
microSD card
USB storage device
